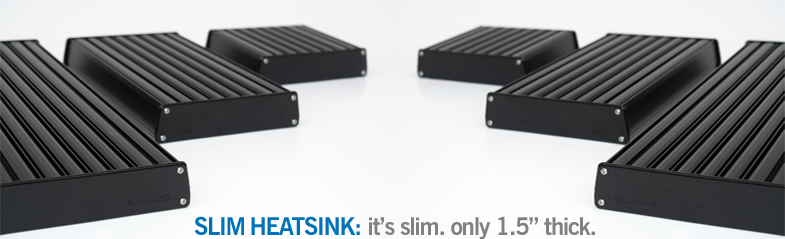

It’s Slim:
- 1.5 inches thick, 6.2 inches Wide
- thermally optimized, 392 square inches total surface area per foot
- 6063 heatsink grade aluminum
- tempered and anodized for durability
- black anodized for improved heat radiation
- 7 lanes of LED mounting area

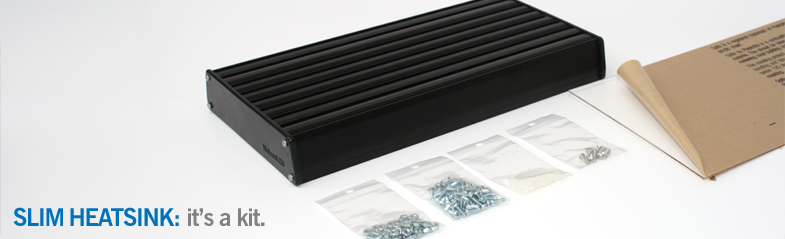

The Kit Includes:
- cut to length heat sink housing
- black anodized to protect finish and improve radiant heat transfer
- 1/16″ [1.5mm] clear acrylic splash guard
- two plastic end caps [injection moulded ABS plastic]
- stainless steel assembly hardware [on exposed parts]
- 4-40 screws and nuts, enough for 25 LED’s [per 12”]*
- nylon washers, enough for 25 LED’s [per 12”]*
*nano fixtures (6″) include enough hardware for 12 LEDs, 18” fixtures include enough hardware for 37 LEDs.

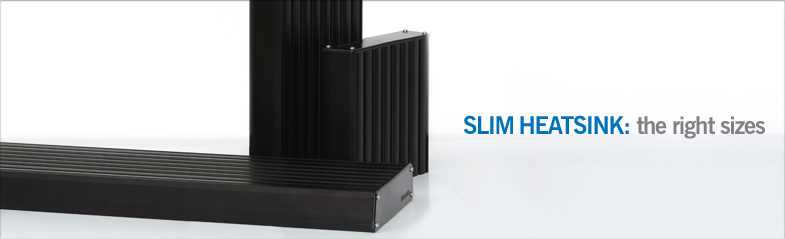

The Right Sizes:
6 inches to 6 feet: the most length options in the industry
Standard lengths include:
- 0.5ft / 6in “Nano” (15.2 cm)
- 1ft (30.5 cm)
- 1.5ft (45.7 cm)
- 2ft (61 cm)
- 3ft (91.4 cm)
- 4ft (121.9 cm)
- 6ft (182.9 cm)

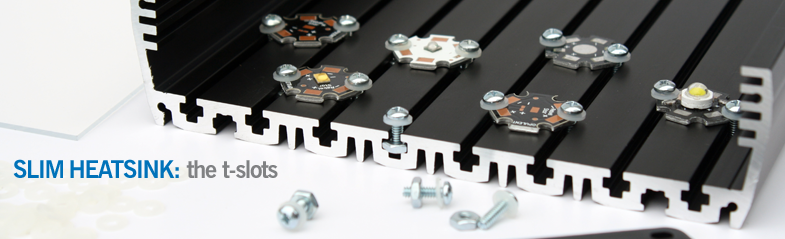

t-Slots for Ease of Use and Flexibility

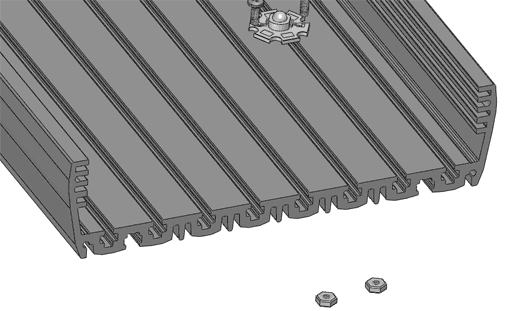

MakersHEATSINK SLIM uses “t”-slots for ease of LED mounting and re-configuring (patented and pending).
Why be locked into a particular LED package, color spectrum, or vendor when you don’t have to?

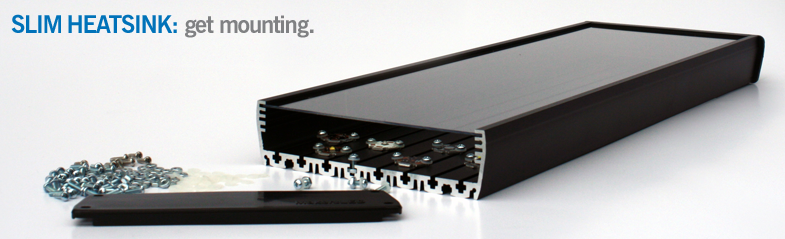

Why use screws? Screws help reduce the thermal resistance of your LEDs – by increasing contact pressure with the heatsink, keeping LEDs cooler.
How Many LEDs?
The kit includes enough hardware to mount 25 LEDs per foot. The heatsink has enough area to mount ~85 star LEDs/foot, but it is not practical to keep this many LEDs cool in such a small area.
MakersHEATSINK SLIM is a solid extruded piece aluminum with no large milled out fan pockets or thermal voids.
A 1 foot SLIM heatsink in open air will cool approximately:
- 33 watts of LEDs with no fan
- 85 – 100 watts of LEDs with a Fan
- Example: One Lumia 5.2 @ 70W will run at a cool temperature of 85F [29C] on the backside of the the heatsink (with a fan)
If you need more cooling power, check out the heavier duty classic MakersHEATSINK.

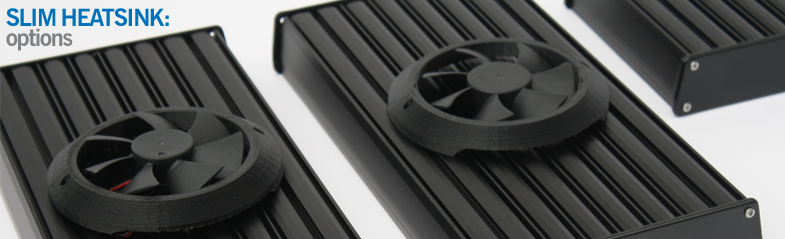

Options (Sold Separately)
- Frameless Fan
- Fan Cover 3D Model for 3D Printing Available here)
- Additional Mounting Hardware
- Hanging Kit
- LED Driver (Compatible with the MakersDRIVER 5UP PRO)
- Controller

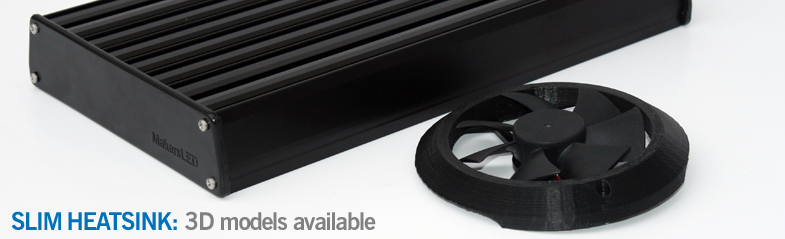

By Makers for Makers: 3D Printable Models
Welcome to the future. The 3D models to our plastic parts available for you to download and 3D print yourself.
- 3D Models Available for all Plastic Parts are Available Here.
- 3D Models of the Heatsink are Available Here for your Planning Purposes.
Made in the USA
It is unusual these days, but we extrude our heatsink products right here in the USA. Americans extrude, cut, QC, and box every single MakersHEATSINK kit.
MakersHEATSINK SLIM
Photo Gallery
.
MakersHEATSINK is Patented and Patent Pending
